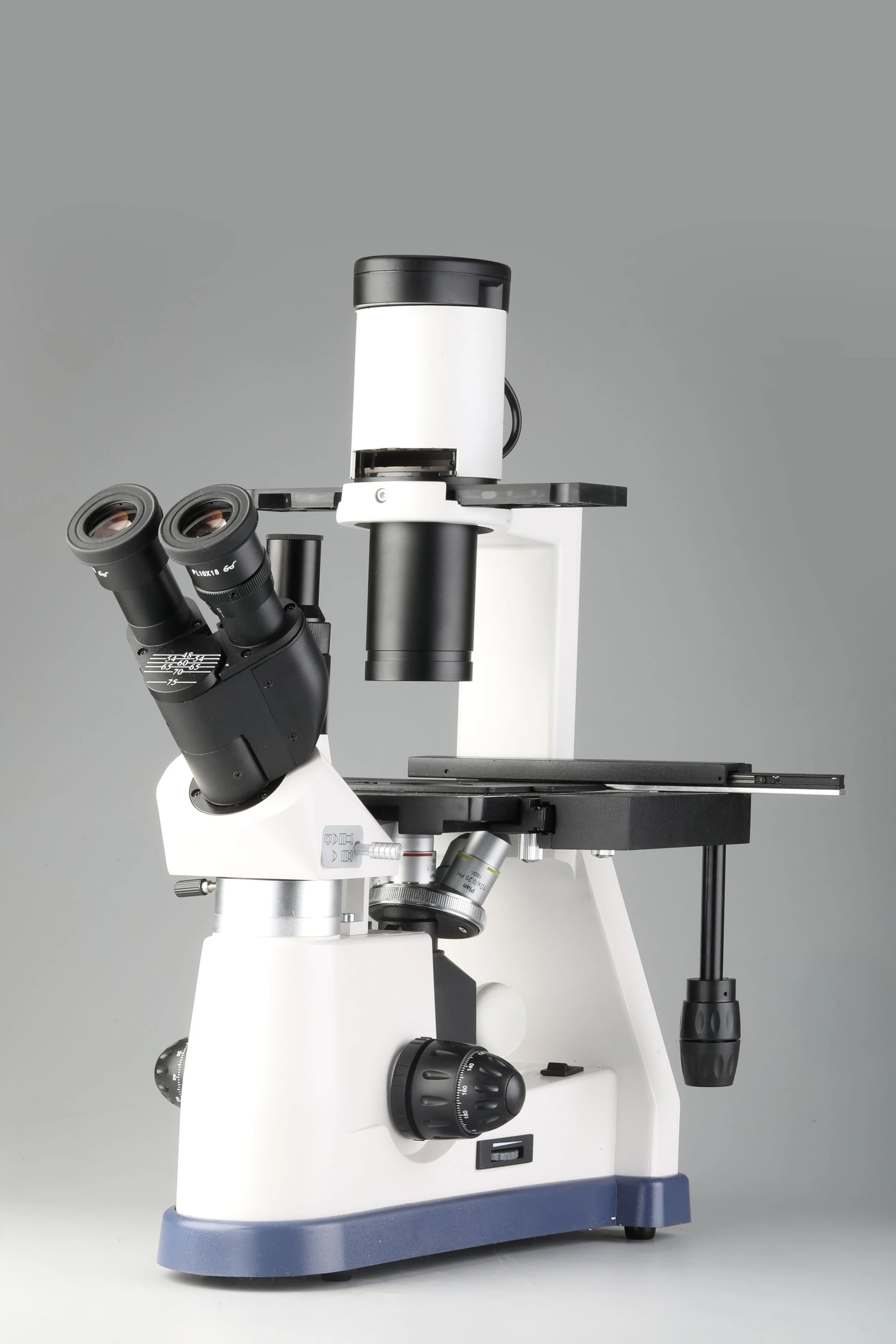

VICTORY TRINOCULAR

Trinocular Observation Head

  • Siedentopf Observation head inclined at 45˚.

  • Diopter adjustment ring on ocular tube.

  • Inter-pupillary distance from 48mm to 75mm.

Eyepiece

Eyepieces EWF 10X (Paired) FOV 18mm.

Objectives (Anti fungus coated)

  • LWD Plan 4X

  • LWD Plan phase 10X

  • LWD Plan phase 20X PH

  • LWD Plan 40X



Mechanical Body and Pre-Focusing

  • Quadruple nosepiece.

  • PRE-FOCUSSING LEVER & TENSION ADJUSTMENT RING are on focusing mechanism.

  • Hard coated mechanical stage is 180mmX165mm.Movement 50mmX40mm.

Illuminator

  • 12V/20W Halogen lamp with spherical collector lens, continuous regulation of the illumination .

Condenser

  • Long working distance 45mm.Condenser with N.A. 0.35. Field diaphragm, Pull out filter socket.

Filter

  • Blue, Green, Yellow Glass Filter.

Standard Accessories

  • Electric Cable, Fuse, Vinyle dust cover, Operating Manual, 12V/20W Halogen bulb, STYRO FOAM molded pack .
