Sub Stage Condenser
Swing out front lens, abbe condenser N.A. 0.9/1.25, filter holder and iris diaphragm.
Illumination System
Kohler illumination system with 12V/100W Halogen Bulb /3W LED external illuminator. Iris diaphragm on collector lens. Aspherical collectors. Brightness control knob.
Standard Accessories
12V/100W Halogen Bulb /3W LED bulb, dust cover, guarantee card, blue filter, Operating manual and Styrofoam molded pack.
B/G LED pointer
Focus able with light intensity control, Blue & Green.

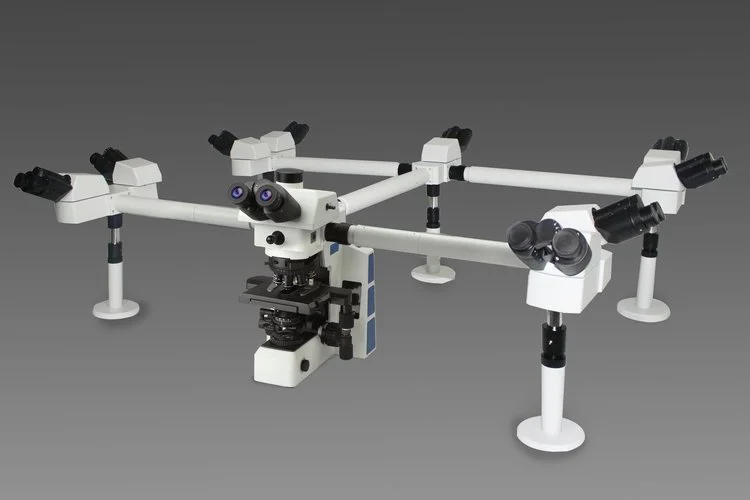

PREMIUM DECA HEAD - Ten Headed Microscope
Are you interested in the products in this catalogue?
Trinocular & Binocular Observation Head
Siedentopf observation head inclined at 30° and rotatable at 360°.(One Set)
Binocular observation heads, inclined at 30 fixed on adjustable stand (Nine sets).
Vertical Focusable Phototube for photomicrography.
Dioper adjustment ring on ocular tube. (±5)
Interpupillary distance from 47mm to 78mm.
Eyepiece
Extra wide field 10X (paired).
F.O.V. 22mm / 25mm and Ocular dia 30mm
Objectives (Infinite Corrected) Anti Mold
Infinity APO Plan Corrected Achromatic 2X.
Infinity APO Plan Corrected Achromatic 4X.(N.A 0.1mm).
Infinity APO Plan Corrected Achromatic 10X.(N.A 0.25mm).
Infinity APO Plan Corrected Achromatic 20X.(N.A 0.4mm).
Infinity APO Plan Corrected Achromatic 40X.(N.A 0.65mm)SL.
Infinity APO Plan Corrected Achromatic 100X.(N.A 1.25mm)Oil SL.
Mechanical Body
Co-axial focusing control with large knob, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
Reverse angle sextuple/Septuple nosepiece with slot for polarizer & DIC attachments.
Mechanical stage size 190mm x 152mm & having low positioned co-axil controls on ball bearing guide ways capacity to hold two glass slides at a time.
Fine div 0.001mm, coarse stroke 35mm per rotation, Fine stroke 0.1mm/rotation. Moving range 78mm x 54mm per rotation.
Upper limit stopper.
Built in base filters(NCB-11, ND-25, ND-6, LBD OP)
