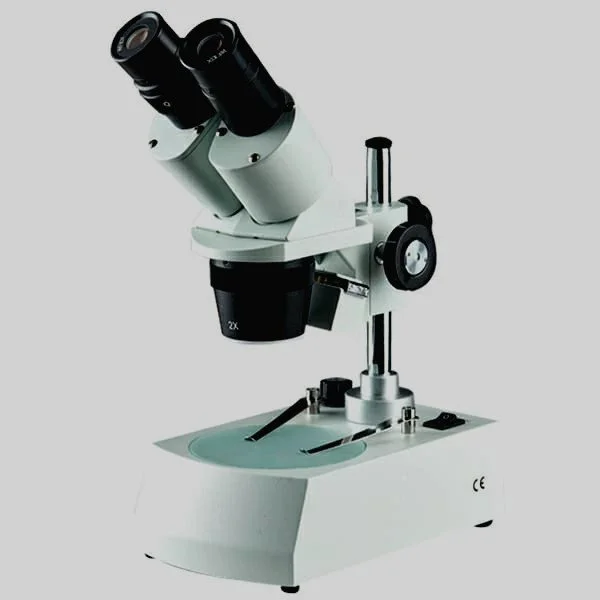

STEREOMASTER-JR BINOCULAR MICROSCOPE

STEREOMASTER-JR

TECHNICAL SPECIFICATION

Optical System

  • Greenough Optical System

Observation Head

  • Observation head inclined at 45 °. 360 Rotatable.

  • Diopter adjustment ring on left ocular tube. Diopter

  • adjustment range : ±5

IPD

  • lnterpupillary distance from 55mm to 75mm.

Eyepieces

  • Extra wide field 10X (paired) F.O.V. 20mm.

  • with Rubber Eye Guard.

Objectives

  • 2x & 4x

Objective Changer

  • Turret Type ( Dual Step)

Visual Field

  • 2X: Visual Field 10mm-Total Mag. 20X.

  • 4X: Visual Field 5mm-Total Mag. 40X

Stand, Holder & Focus Drive

  • Safe and durable Pole stand having holder for grip head with rack & pinion focus drive, focus knob can be adjusted with one or both hands. Durable and precise  dove-tail stand secures microscope head in place.

Base

  • Rectangular base with twin Stage Clips.

  • Size : 215 x 160 x 60 mm.

    Plates for Specimens

Moulded Black & White Plate for Opaque specimens and Clear Glass Plate for Transparent Specimens. Plate Size : 95mm.

Working Distance

  • 2x Objective W.D. 88mm. Mag. Range : 20x 4x Objective W.D. 64mm. Mag. Range : 40x

Illumination

  • Reflected and transmitted light system with LED lamp. Lamp Life 30000 hrs. system regulated with intensity control knob ( Latest Light Technique )
