Light Source

  • Transmitted Kohler light source: 3W LED or 12V/100W tungsten halogen bulb.

  • Epi-Fluorescence light source: 100W high pressure mercury lamp.

Standard Accessories

  • 3W LED/ 12v/100w Halogen bulb, operating manual, dust cover, fuse, guarantee card, blue filter, power supply for 100w mercury lamp and styrofoam molded pack.

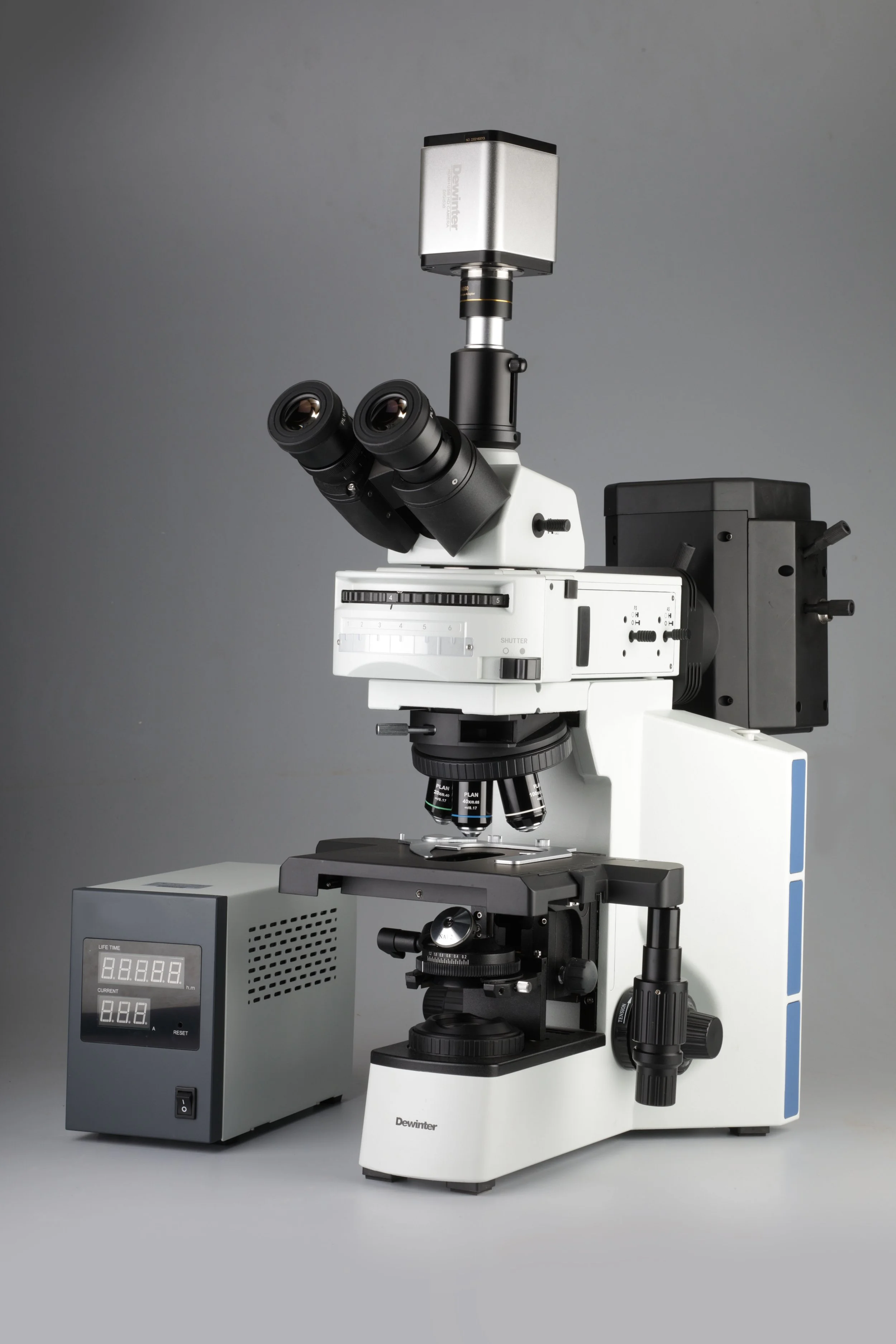

Trinocular Observation Head

  • Siedentopf observation head inclined at 30° rotatable at 360°.

  • Light path selector lever to direct either full light to observation head or 80% to vertical.

  • Vertical phototube for digital camera.

  • Diopter adjustment ring on ocular tube(±5).

  • Inter-pupillary distance from 48mm to 75mm.

Eyepiece

  • Wide field eyepiece 10X (paired) F.O.V. 25mm.

Objectives (Anti fungus coated)

  • Infinity Plan Objective 2X

  • Infinity Plan Objective 4X

  • Infinity Plan Objective 10X

  • Infinity Plan Objective 20X

  • Infinity Plan Objective 40X(SL)

  • Infinity Plan Objective 100X(SL) Oil

Mechanical Body and Pre-Focusing Lever

  • Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.

  • Reverse angle sixtuple nosepiece on ball bearing. Slot for Polarizer and DIC.

  • Double Plate rackless mechanical stage is 187mmX167mm.

  • The mechanical stage has low positioned co-axial controls on ball bearing guide ways.

  • Fine division 0.001mm corse, per rotation , fine stroke 0.1mm per rotation, moving range 24mm

Substage Condenser

  • Swing out front lens, N.A. 0.9/1.25, filter holder and iris diaphragm.

Excitation Filters

  • B Excitation (400-490nm) standard

  • G Excitation (510-550nm) standard

  • UV Excitation (330-385nm) standard

  • V Excitation (400-410nm) standard
