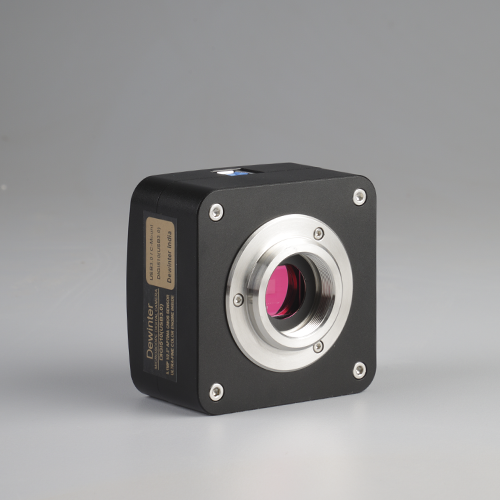

DIGI 510+ (USB 3.0) CAMERA

Features:

  • 5.0 megapixels with progressive scanning CMOS image sensor.

  • No compression, no interpolation.

  • Support still image capture (JPG, BMP)

  • USB3.0 interface, up to 480MPS, external power no need.

  • Interfaced to a computer via USB3.0 technology for rapid image download.

  • Plug-to-use, suitable for shooting of any standard biological, stereo and metallurgical   microscopes.

  • Ease of operation; only take 5 minutes to master the friendly software.

  • Standard C-Mount makes connection to any microscope easy. Macro lens setups are also supported

  • Fully integrated package with digital camera and imaging software for managing your imaging work flow.

  • Data can be shared, stored and edit, real-time preview function offers you the greatest experience with the microscope.

  • Video taping is available, simple to store and transfer when compression mode is selected;

Specifications:

  • Sensor: 1/ 2.5" CMOS, MICRON (MT9P031)

  • Resolution: 2592×1944(8bit)

  • Pixels Size: 2.2μm×2.2μm

  • Frame Rate: 97.5fps @648x486 , 49.5fps @1298x972, 15.5fps @2592x1944

  • Shutter: Electronic

  • S/N Ratio: 43 dB

  • Scanning Mode: Progressive scanning

  • Sensitivity: 1.0 V/ lux-sec (550nm)

  • Data Interface: USB 3.0 (480 Mbit / sec)

  • Power Supply: DC 5V ± 5%

  • Electricity: ≈200 mA

  • White Balance: Manual/Auto one-touch

  • Exposure control: 10μs–32ms,Auto exposure

  • Software: Display/Film/Video

  • Operating Temp: 0°C ~ 60°C
