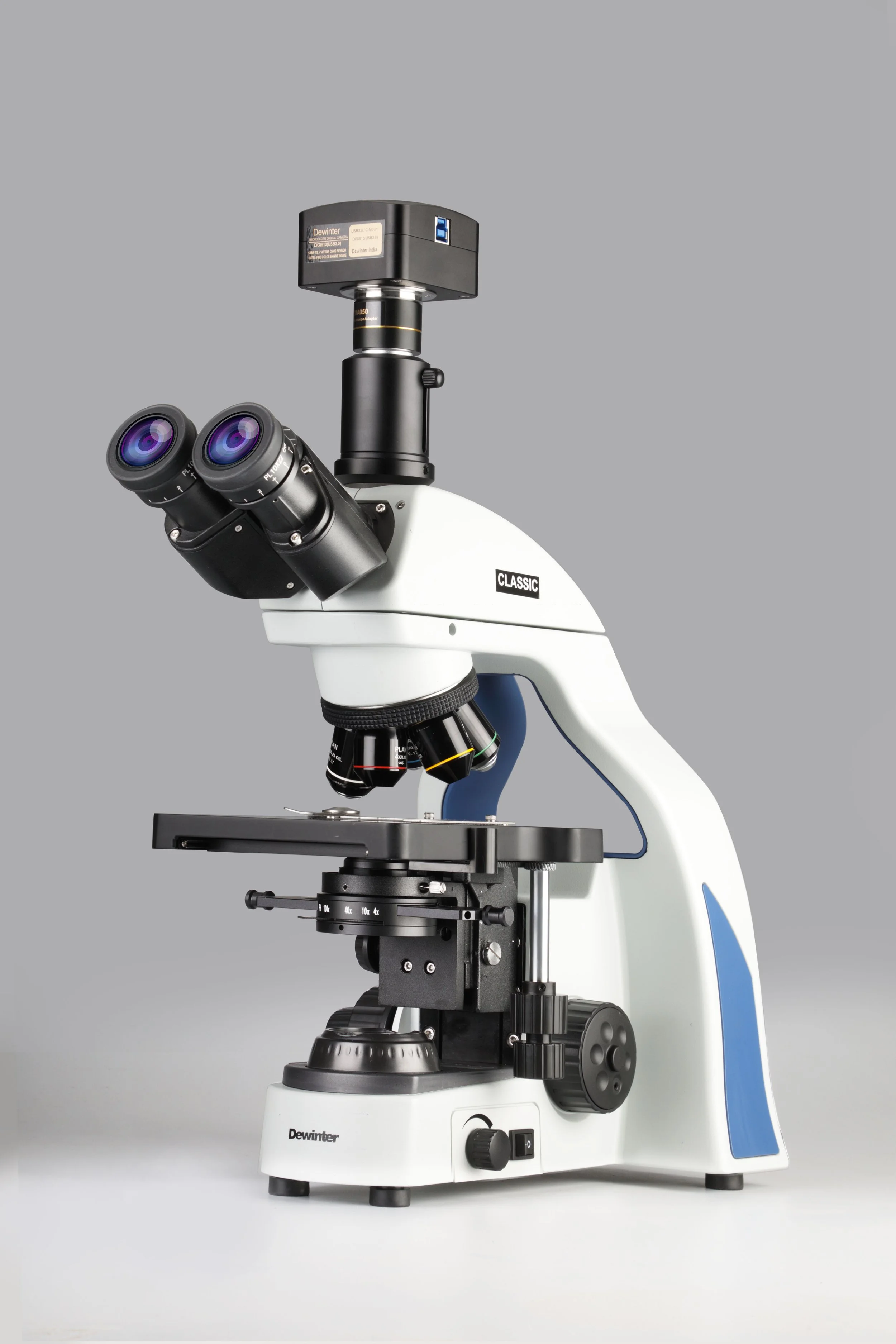

CLASSIC TRINOCULAR

Trinocular Observation Head

  • Siedentopf Observation head inclined at 30° and rotatable at 360°.

  • Vertical focusable phototube for Digital Camera.

  • Diopter adjustment ring on ocular tube (±5).

  • Inter-pupillary distance from 48mm to 75mm.

Eyepiece (Anti fungus coated)

  • Extra wide field 10X (paired) F.O.V. 22mm




Objectives (Anti fungus coated)

  • IOS Plan Achromatic 4X

  • IOS Plan Achromatic 10X

  • IOS Plan Achromatic 20X(S.L.)

  • IOS Plan Achromatic 40X Oil(S.L.)

  • IOS Plan Achromatic 100X Oil(S.L.)

Mechanical Body and Pre-Focusing

  • Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.

  • Reverse angle quintuple nosepiece revolves on ball bearing; comes with a Slot for polarizer.

  • Double plate mechanical stage size 150mm X 140mm having low positioned co-axial controls.

Sub Stage Condenser

  • Abbe condenser N.A.1.25 swing out filter holder and iris diaphragm.

Illumination System

  • Brightness control knob: Kohler illumination system with 3W LED.

Standard Accessories

  • Operating manual, dust cover, guarantee card and Styrofoam molded pack.
