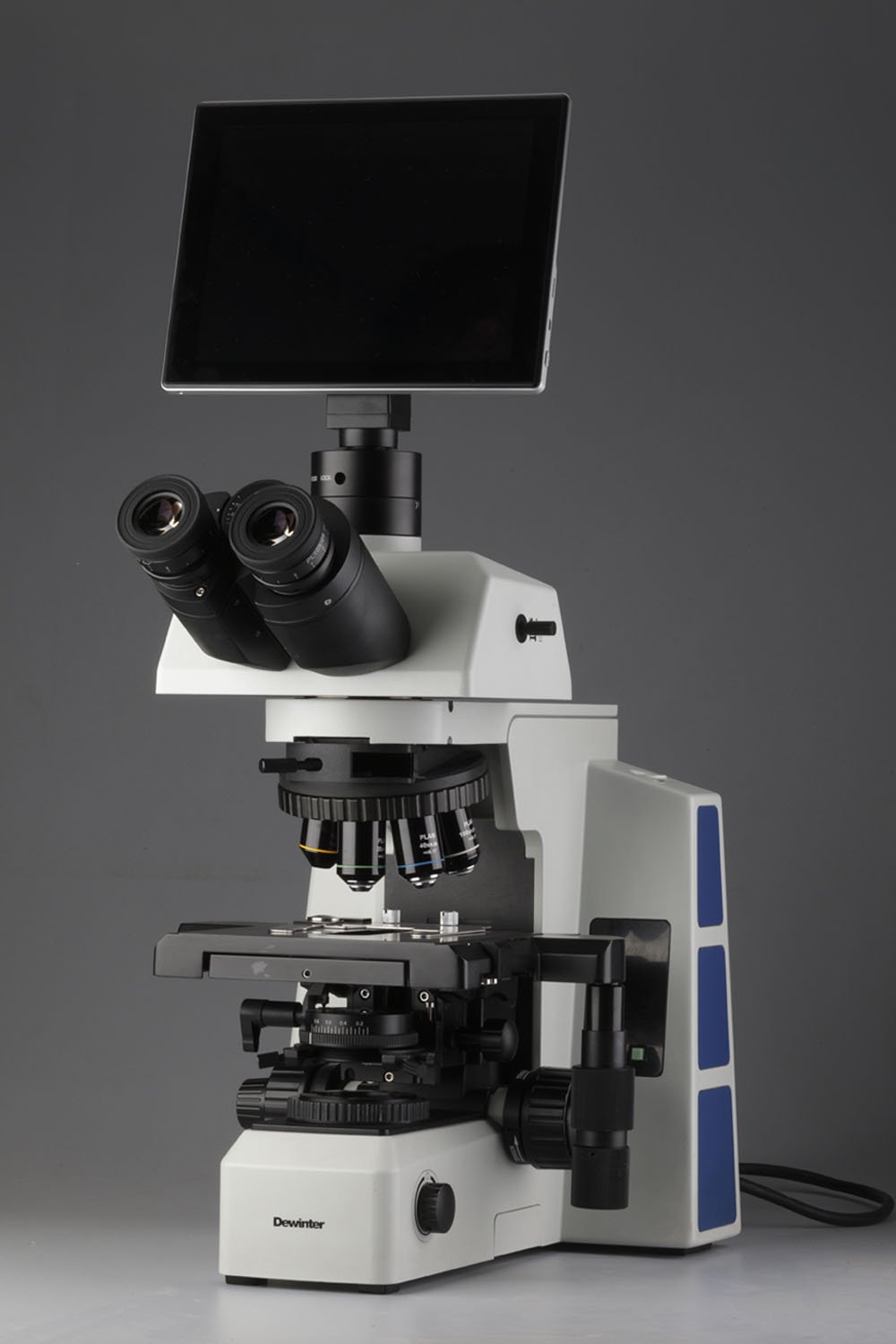

LCD Observation

• 9” Touch screen, high resolution ( 2592x1944) color LCD.

• Built-in camera with 5.0 Megapixel resolution.

• Pre-loaded capture & measurement software.

• LCD screen can be rotated at 360° Horizontally, 90° vertically.

• OS: Android 4.1.1.

• CPU: Dual-core 1.5 GHz, 1G(DDR3) Memory, Internal 5GB or external Mini SD card HDMI display.

• Output ports: one HDMI, one USB 2.0, one Mini USB.

Trinocular Observation Head

• Siedentopf observation head inclined at

• 30º rotatable at 360º.

• Vertical phototube for micro photography.

• Diopter adjustment ring on ocular tube.

• Interpupillary distance from 48mm to 75mm.

Eyepiece (Anti fungus)

• Extra wide field 10X( paired)

• F.O.V. 26.5mm.Ocular dia 30mm.

Objectives (color corrected Infinity corrected objectives)

• Plan Achromatic 2X

• Plan Achromatic 4X

• Plan Achromatic 10X

• Plan Achromatic 20X

• Plan Achromatic 40X.

• Plan Achromatic 100X

Mechanical  Body and Pre-Focusing

• Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.

• Reverse angle septuple nosepiece on ball bearing. Slot for Polarizer & DIC.

• Double Plate Reckless Mechanical stage is 187mmX167mm.

• The mechanical stage has low positioned co-axial controls on ball bearing guide ways.

• Fine division 0.001mm corse, per rotation, fine stroke 0.1mm per rotation, moving range : 80mm X 55mm.

• Built in transmitted filter LBD/ND6/ND25.

Sub Stage Condenser

• Swing out front lens, abbe condenser N.A. 0.9/1.25, filter holder and iris diaphragm.

Illumination System

• 12V/100W halogen lamp house for transmitted light, centre pre-set, intensity adjustable.

Standard Accessories

• 12V/100W halogen tungsten bulb, Power cord and cedar oil.
