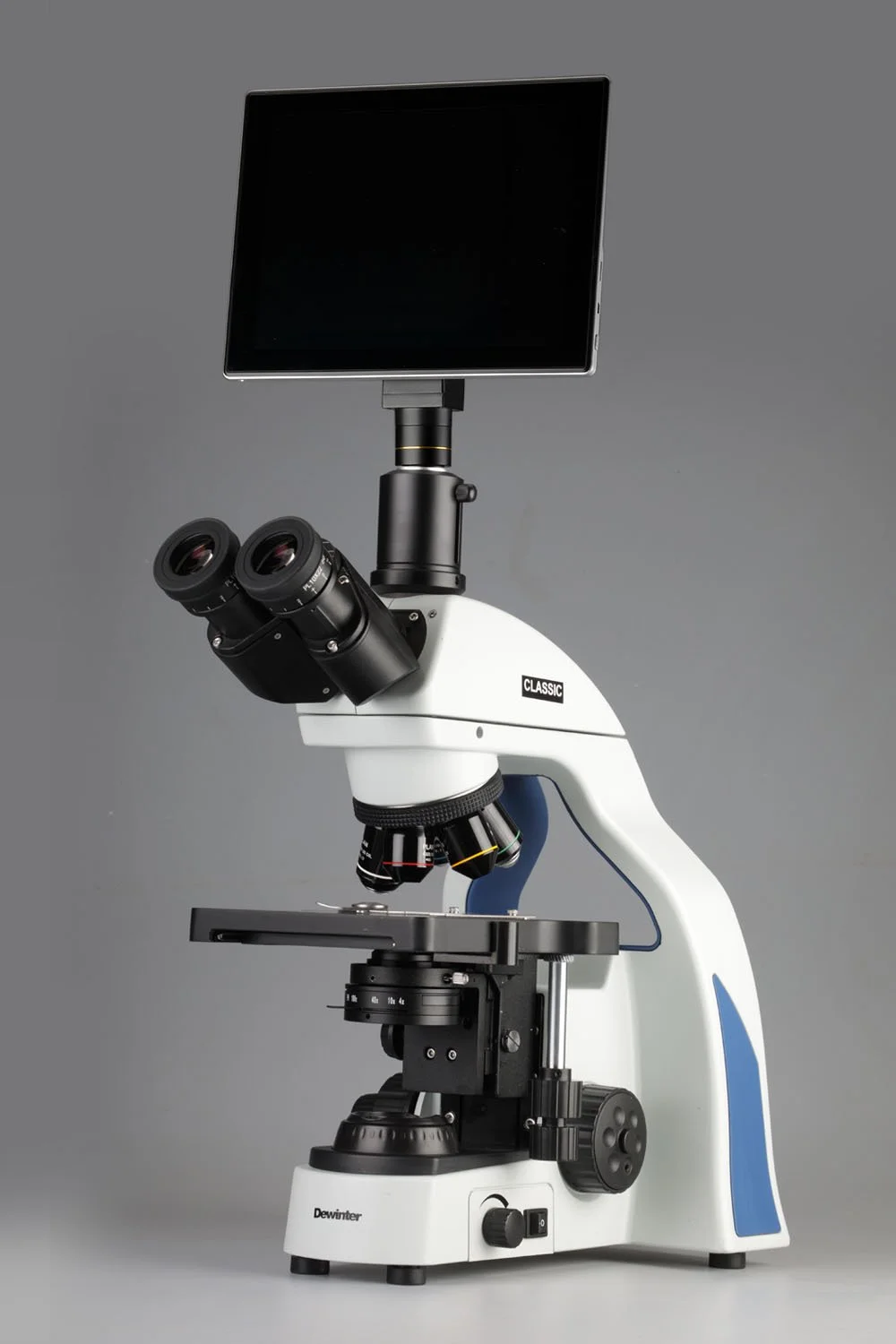

DIGI - CLASSIC

Are you interested in the products in this catalogue?




LCD Observation Head

  • 9” high resolution TFT HD color Display

  • Built-in HDMI Camera with 3.0 Megapixel resolutions.

  • Pre loaded capture & measurement software.

  • Full Resolution Image capture

  • Full Resolution video 30 FPS @ 1024x768

  • No PC, No Software Required

  • Output ports: one HDMI, one USB 2.0, TF Cam

Trinocular Observation Head

  • Siedentopf observation head inclined at 30° rotatable at 360° light splitting ratio 8:2.

  • Diopter adjustment ring on ocular tube (±5).

  • Interpupillary distance from 50mm to 75mm.

Eyepiece (Antifungus)

  • Extra wide field 10X (paired) F.O.V. 22mm.

Objectives (Infinite) Anti Mold & Anti Fungas

  • Plan Achromatic 4X

  • Plan Achromatic 10X

  • Plan Achromatic 20x

  • Plan Achromatic 40X (S.L.)

  • Plan Achromatic 100X Oil (S.L.)

Mechanical Body

  • Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.

  • Reverse angle quintuple nosepiece revolves on ball bearing Slot for Polarizer.

  • Mechanical stage size 140mm x 132mm having low positioned controls on ball bearing guide ways.

Sub Stage Condenser

  • Abbe condenser N.A. 1.25 with adjustable iris diaphragm.

Standard Accessories

  • Operating manual, dust cover, guarantee card and Styrofoam molded pack.

Illuminator system

  • 3W LED Koehler’s illumination system with brightness control knob.
